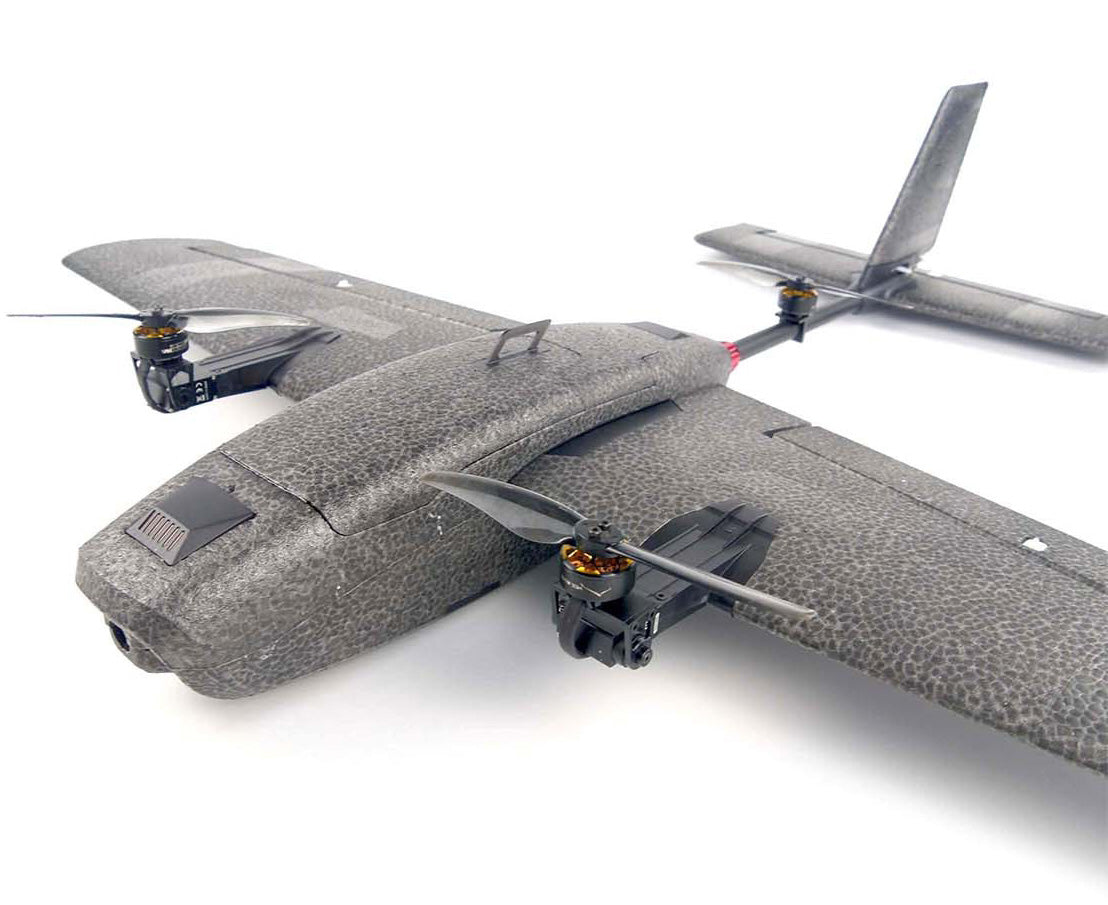

T1 Ranger PNP-VTOL Conversion Kit

T1 Ranger PNP-VTOL Conversion Kit

$89.00 USD
$89.00 USD $89.00 USD
Sale Sold out
Shipping calculated at checkout.

Option

New Updated Version *31th Dec 2024

  • Added 2pcs of Y cables for combinate ESC and LED
  • Added 2pcs of 3pin signal cables, up to 4pcs now
  • Banana connectors are now not pre-soldered on the rear motor wire, but Separately configured so that users can consider whether to use it
  • Tail boom becomes Aluminum, more light-weight

New Updated Version *28th May 2024

  • Updated Tilt Servo arm and mount. Lighter weight

New Updated Version *09th Nov 2023

  • Updated Tilt Servo. Lighter weight
  • Updated Motor Wires to new version of silicone wires for longevity
  • Banana connectors are now pre-soldered on the rear motor wires

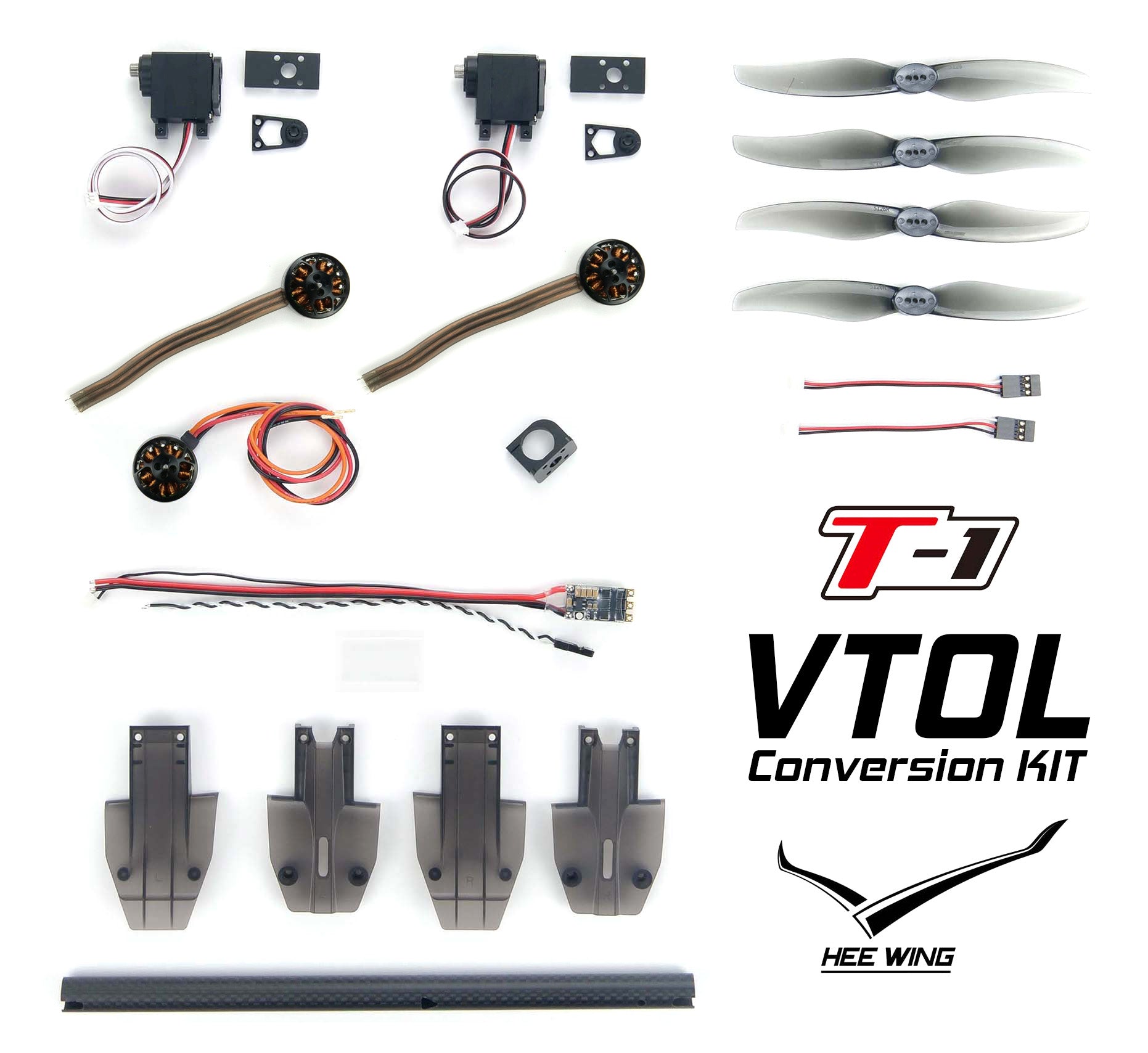

 Contents of the Conversion Kit:

  • 2x Tilt Servo

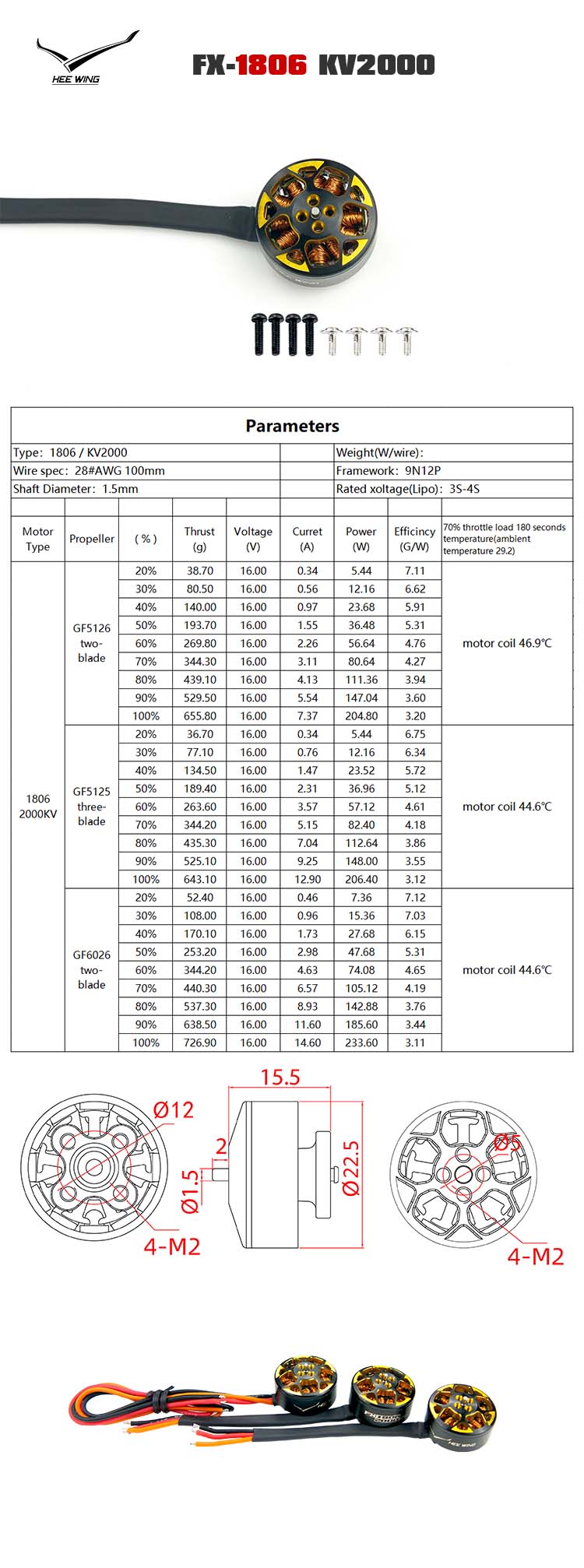

  • 3x Motor FX-1806-2000kv
  • Wing tilting mounts (1x left + 1x right)
  • 1x Aluminum Tail Boom
  • 1x Rear Motor Mount
  • 1x FX-25A ESC for Rear Motor
  • 2 pairs Gemfan 5126 props
  • 4x 3pin Signal cable
  • 2x Y cable
  • 33x M2*4 Glue patch Countersunk head screw
  • 9x M2*8 prop fixing screw

     Requiries your own:

  • Hee Wing T1 Ranger PnP
  • Flight Controller running Ardupilot or VTOL capable
  • GPS
  • and so on you need


Firmware & Parameters
F405 WSE - Download Here
SN-FAST - Download Here
* paramaters are tuned for Hee Wing T1 PNP only, use on other models at your own risk.
* for SN-Fast, only the chinese version is available.

*Note : this VTOL setup must be run on 4S, not lower.


Video of VTOL Launch, Transition, Flight and Landing





VTOL Build Guide by Painless360


Build Video by Giz FPV
