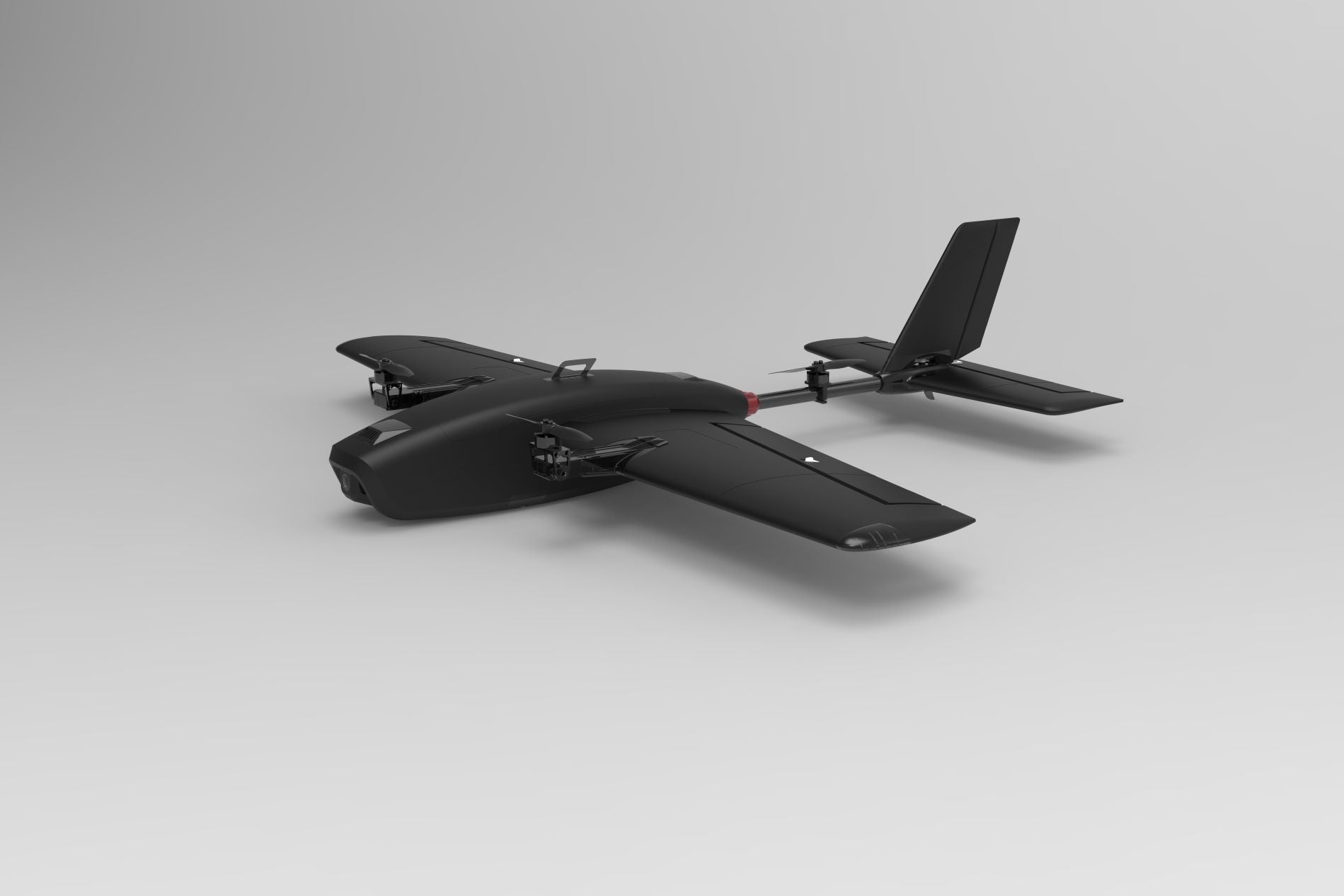

T1 Ranger VTOL - PNP

Name: T1 Ranger VTOL - PNP
Brand: HEEWING
SKU: T1-V-PNP-GY-FC
Rating: 4.9 (28 reviews)

28 total reviews

$299.00

Sale Sold out

Shipping Policy

Option PNP VTOL w/o FC PNP VTOL with FC/White color PNP VTOL with FC/Grey color

Product variants

Quantity

Description

✈️ FREE Worldwide Premium Tracked Airmail Shipping (US UK EU CA UAE)

T1 Ranger VTOL - PNP comes *Pre-installed & Pre-configured F405 based VTOL Flight Controller!

If you want to experience the factory parameters, you just need to hook up your receiver, configure the receiver, perform radio calibration, match the flight modes to your radio and you are on your way to do your first VTOL take off, anywhere!

CAUTION: Please ensure all components are securely fastened and all direction are correct before flight! Please read the guide manual carefully before operating、adjusting and flight the model and follow all precautions, limitations and recommendations in the manual to do the installation.

In order for everyone to enjoy flying better, we sincerely recommend that all users carefully check their aircraft before taking off（Glue, nails, nuts, bolts, screws, foam ect.) Safety is your own responsibility. Please be sure to check carefully before takeoff.

Features

1. Small, lightweight and portable at 730mm wingspan

2. Quick disassembly design. Assemble and disassemble for transportion in a minute

3. VTOL - Vertical Take Off and Landing

4. Superb aerodynamic design. Stable at low speed

5. Large internal space to carry battery and electronics with high flexibility to achieve the best CG

6. Front and rear hatch for maximum flexibility organising your electronics

7. Dedicated front FPV camera mount

8. White foam is now the same high dense version as Gray foam

9. New revised air intake for better cooling

10. Easily detachable main wings reduce damage during a crash

Specification

Brand : Hee Wing RC

Model : T1 Ranger VTOL - PNP

Material : EPP

Color : Gray only

Wingspan : 730mm

Length : 645mm

Height : 140mm

Weight : 451gram

Takeoff Weight : 600g to 750gram

Fuselage Size : 245m(L) x 51mm(W) x 48mm(H)

Minimum Speed : <20km/h

Maximum Speed : >120km/h

Maximum Range : 30 km

Maximum Cruise Time : 35min

Package Dimension : 400mm x 230mm x 155mmm

What's included

1x T1 Ranger VTOL - PNP

- Preinstalled 3x FX-1806 2000KV Motor, 3x FX-25A ESC, 3x 7g Digital Metal Gear Servo, 2x Metal Gear Tilt Servo, 3x 5126 propellers, Quick Release Wiring Plug for the Main Wings, and your choice of whether to have Flight controller included.

*Options

a. PNP without FX-405 Flight Controller - comes with 5V/3A UBEC ( White version T1)

b. PNP with FX-405 Flight Controller - Preinstalled + Preconfigured VTOL FX-405 Flight Controller with 5V/5A PMU & 9V/3A UBEC

Requires your own/not included

Radio - Minimum 5 channels. Grab one 👉 here

Receiver - Minimum 5 channels. Grab one 👉 here

Battery : 4S 1300mAh - 5000mAh or 150-250gram *recommended ( Default connector in plane is XT60) 👉 here
Charger : supports up to 4S LiPo charging

Note

- VTOL parameters preloaded are for reference only. Fly at your own risk. We are not responsible for any issue arise from this such as crashing. You may adjust the parameters accordingly.

- each of your main wings, tail and fuselage are individually box within the external shipping box for maximum protection during shipping

- VTOL must be powered on 4S, not lower.

- to ensure a great first experience with your T1 VTOL PNP, check out the notes on the instruction page before flight

Featured photos & video

F405 based VTOL Flight Controller specially customized for Hee Wing RC with much smaller form factor. Pre-loaded with VTOL parameters.

CAUTION !

Notice! R/C aircraft, including HEEWING's T2, are not toys. When operating, you must pay attention to your own personal safety, the safety of others, and the safety of the surrounding environment. Manufacturers and dealers cannot control the user's abnormal wear and tear of parts.

We are not responsible for any accidents caused by improper assembly or use. This product is provided to adults who have experience in operating fixed-wing models or have considerable technical personnel to guide flying at local legal remote control flying fields to ensure safe and error-free operation.

After the sale of this product, HEEWING cannot maintain any control over its operation or usage. The company will not be responsible for any performance or safety liability in any operation and use control.
